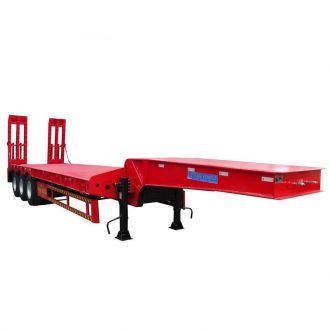

Tri Axle 80T Low Bed Truck Trailer

Low bed trailer description:

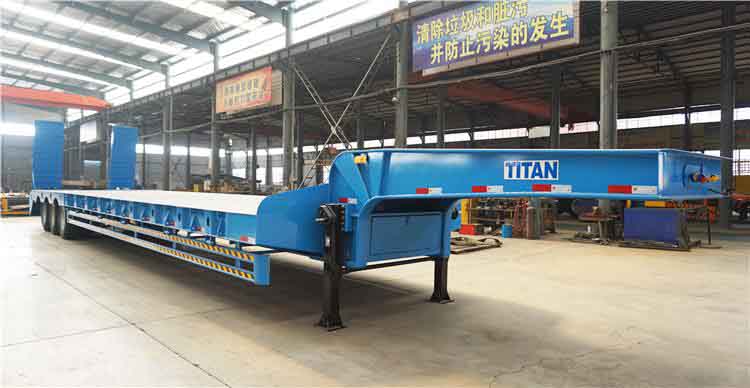

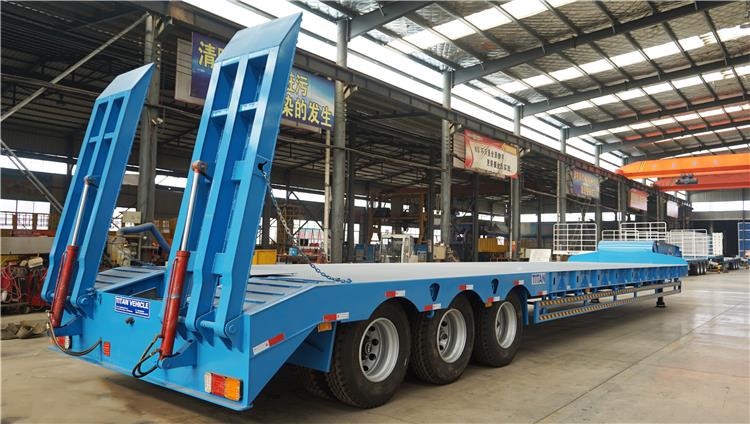

TITAN tri axle 80t low bed truck trailer is widely used in heavy machines transportation.

The main beam of TITAN low bed truck trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel. We use it to make sure that our TITAN Excavator Trailers is with a long service life and to avoid unnecessary maintenance.

Tri Axle 80T Low Bed Truck Trailer Price for Sale in Port Sudan

Tri Axle 80T Low Bed Truck Trailer Price for Sale in Port Sudan

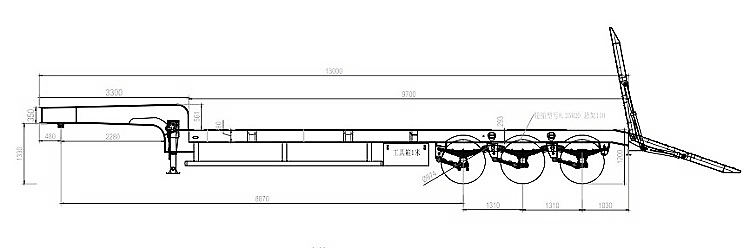

Specification of tri axle low bed trailer for sale：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 3 axles, 13T/16T, FUWA/BPW/TITAN Brand

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

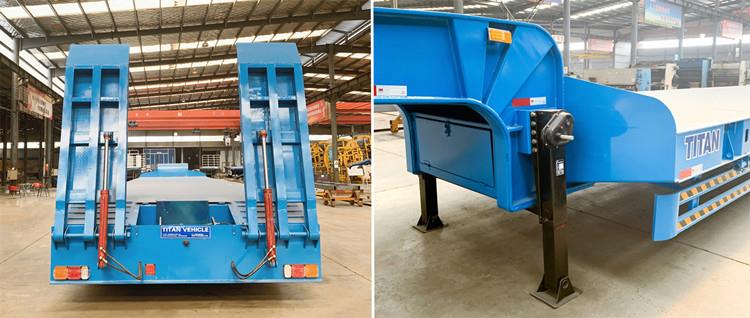

Landing gear: JOST brand

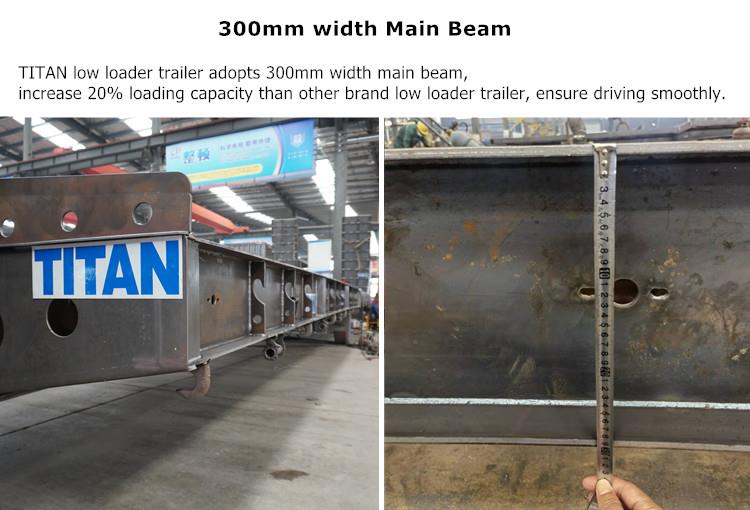

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

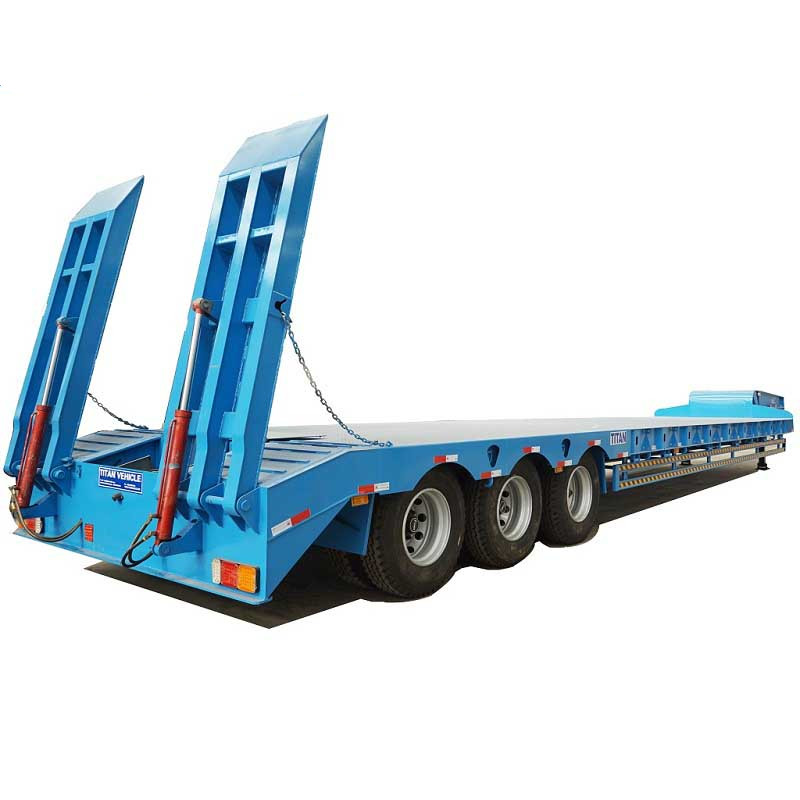

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantages of low bed trailer price:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

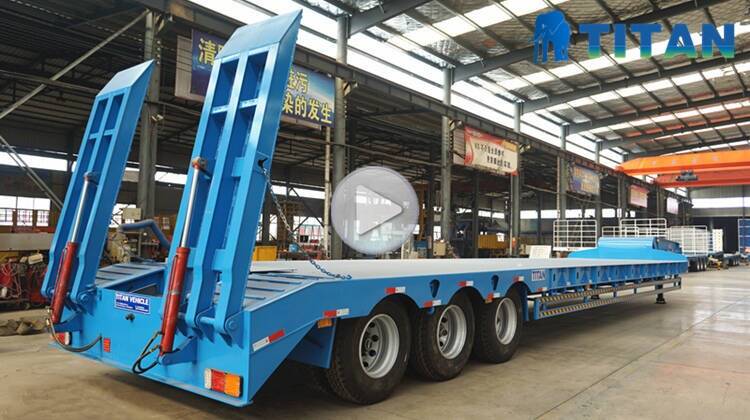

3 Axle Lowbed trailer details display video

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
