4 Line 8 Axles Lowbed Trailer Truck

Lowbed Trailer Description:

Lowbed for sale are generally used to transport large immovable construction machinery, such as excavators, bulldozers, harvesters, loaders, forklifts and other heavy vehicles that are not easy to move, or to transport some large objects, road construction equipment, large tanks, power stations equipment and all kinds of steel.

The optimized design for lowbed transport of the whole lowbed trailer truck is flexible and diverse, and the frame bearing surface can be designed according to user requirements to meet your transportation needs for various special goods.

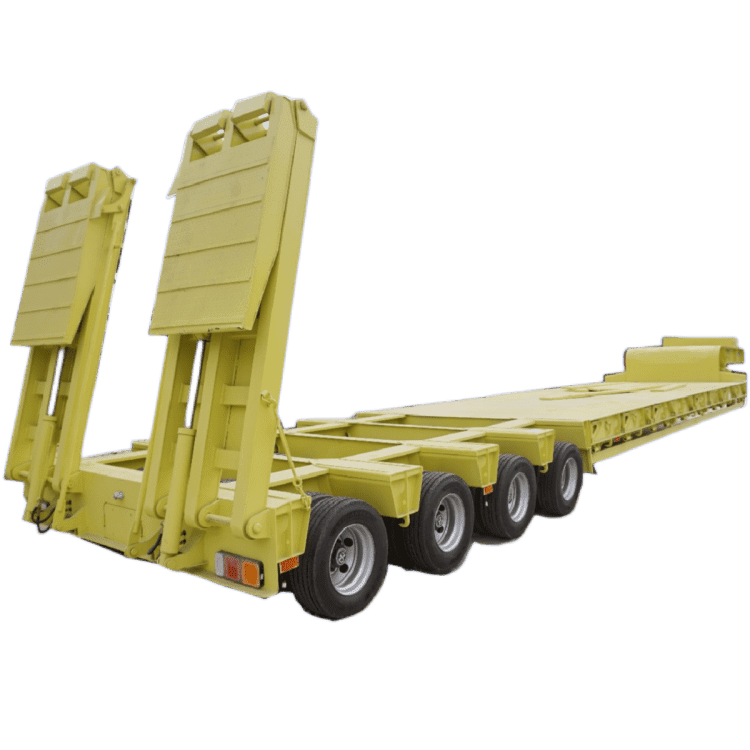

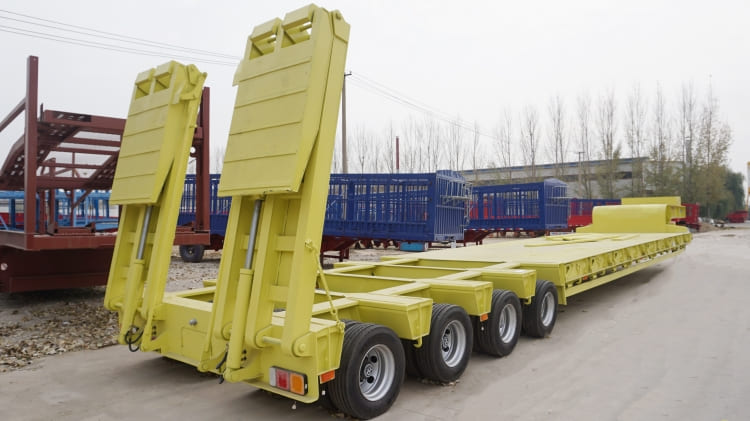

There are two ladders at the rear of the lowbed trailer, you can choose a spring ladder, a hydraulic ladder or a foldable hydraulic ladder, this 4 line 8 axles lowbed trailer is equipped with a foldable hydraulic ladder. The excavator and other equipment can be towed onto its cargo platform, which is convenient and quick.

4 Line 8 Axles Lowbed Trailer Truck Transport for Sale in Sudan

4 Line 8 Axles Lowbed Trailer Truck Transport for Sale in Sudan

4 Line 8 Axles Lowbed Trailer Truck Transport for Sale in Sudan

Lowbed Transport Details:

4 Line 8 Axles Lowbed Trailer Truck Transport for Sale in Sudan

4 Line 8 Axles Lowbed Trailer Truck Transport for Sale in Sudan

Lowbed for Sale Specification:

Model: 4 line 8 axles lowbed trailer

Overall dimension: 17500mm * 3500mm *3400mm

Loading capacity(T): 100-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 32 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

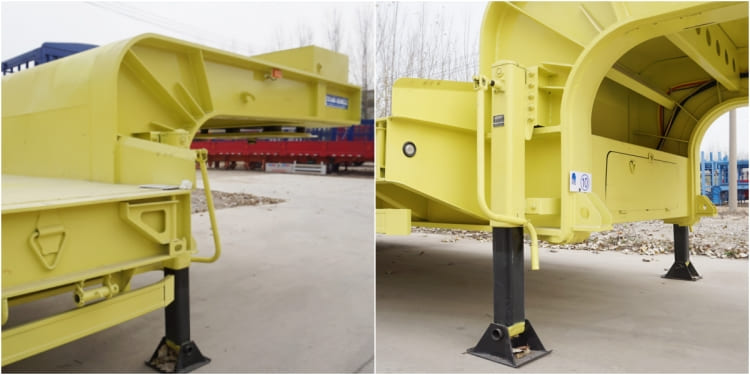

Landing gear: JOST brand/FUWA brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm

Bottom Platform: 5mm thick checkered plate

Ramp: Foldable hydraulic ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24 V

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Paint: Polyurethane paint

Lowbed Trailer Truck Advantages:

1. Our company lowbed transport adopts reinforced thick suspension. It is equipped with a balance pin between the front and rear springs, which can balance the front and rear axles, improve the carrying capacity of the body, and greatly increase the use of the lowbed trailer truck. Lowbed for sale are optimized for flexibility and versatility. According to user requirements, different bearing surfaces can be designed to meet the transportation of various special goods.

2. The ramp of lowbed trailer is welded by high-strength steel HG60 steel, which has strong bearing capacity, effectively ensuring that the weight of excavators or other heavy equipment can pass through the spring ramp without deformation or damage, and has a long service life. Various types of ladders are designed to meet your needs different cargo requirements. This 4 line 8 axles lowbed trailer adopts a foldable hydraulic ladder, which is suitable for transporting special large machinery.

3. Sinotruk lowbed trailer truck optional JOST landing gear, is the world famous recognized brand accessories. Better bearing capacity, long service life. And it also use 16 ton brake system axle, our axle has more than 20 years manufacture experience and the axle with a better bearing capacity and good braking effect.

4. Our lowbed trailer with polyurethane coatings, high adhesion, high color rendering, beautiful color, and the cost is twice that of ordinary paint. The annual limit is long and will not fall off within five years. And the color can be customized according to customer needs.

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
