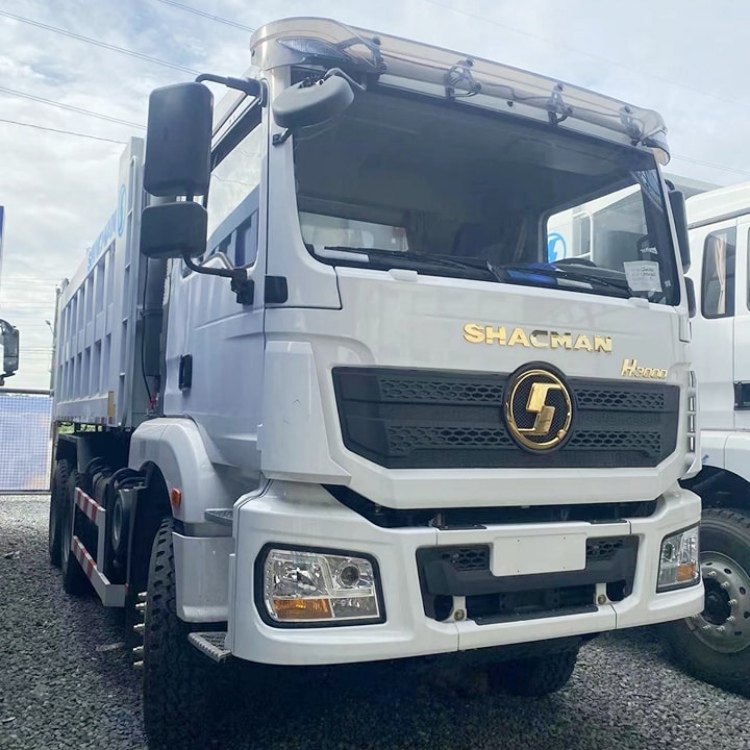

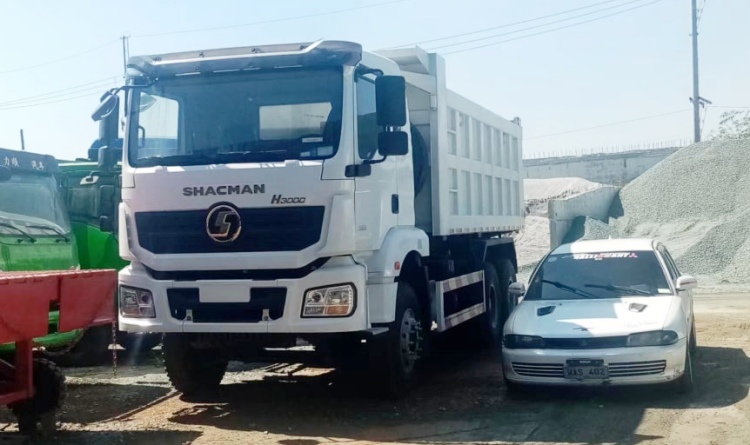

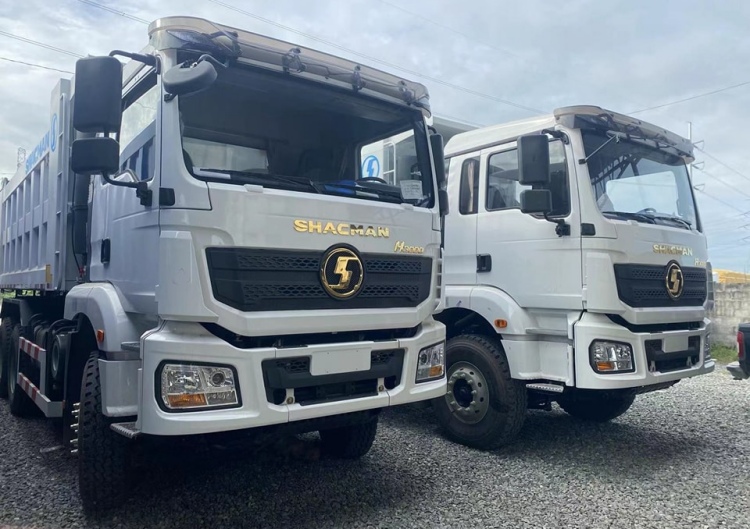

Shacman H3000 Dump Truck

Shacman H3000 Dump Truck Description :

Shacman H3000 dump truck are designed to meet the needs of users. During the manufacturing process, the quality is continuously improved and the cost is low. Especially in terms of fuel consumption design, the fuel consumption is the lowest.

Compared with other dump trucks, the seat of Shacman H3000 dump truck is specially designed with a shock absorption system to provide operators with a more comfortable operating environment.

Shacman H3000 Dump Truck in Sudan | Shacman Dump Truck Price | Shacman 6x4 Dump Truck

Shacman H3000 Dump Truck in Sudan | Shacman Dump Truck Price | Shacman 6x4 Dump Truck

Shacman H3000 Dump Truck in Sudan | Shacman Dump Truck Price | Shacman 6x4 Dump Truck

Shacman H3000 Dump Truck Specification :

Drive type: 6x4 LHD

Cab

Type: H3000 mid-lengthened flat roof with 1 sleeper

Equipment: Hydraulic main seat, four-point hydraulic suspension cab, lever-type rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedal, water tank protection grid, tail light Protection grid, 165Ah maintenance-free battery, full English logo

Vehicle Main Dimensions

Wheel base(mm): 3775+1400

Total dimensions: 8750×2490×3450

Weight

Kerb mass: 12400kg

Total mass: 25000kg

Engine

Brand: WEICHAI

Model: WP10.380E22

Power(kw/HP): 279/380

Displacement(L): 9.726

Emission  Standard: Euro II

Transmission

Brand: FAST

Model: 10JSD180+QH50

Control type: Manual

Gear shift: 10-forward and 2-reserve speeds

Axle

Front axel: MAN 9.5T

Rear axel: 16T Man double reduction axle with ratio 5.92

Tire Type(Standard): 12.00R20

Cargo Dimension (mm): 5600×2300×1500, middle lifting system, thickness of floor 8mm and side 6mm
