When unhooking from the prime mover, the folding neck trailer for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

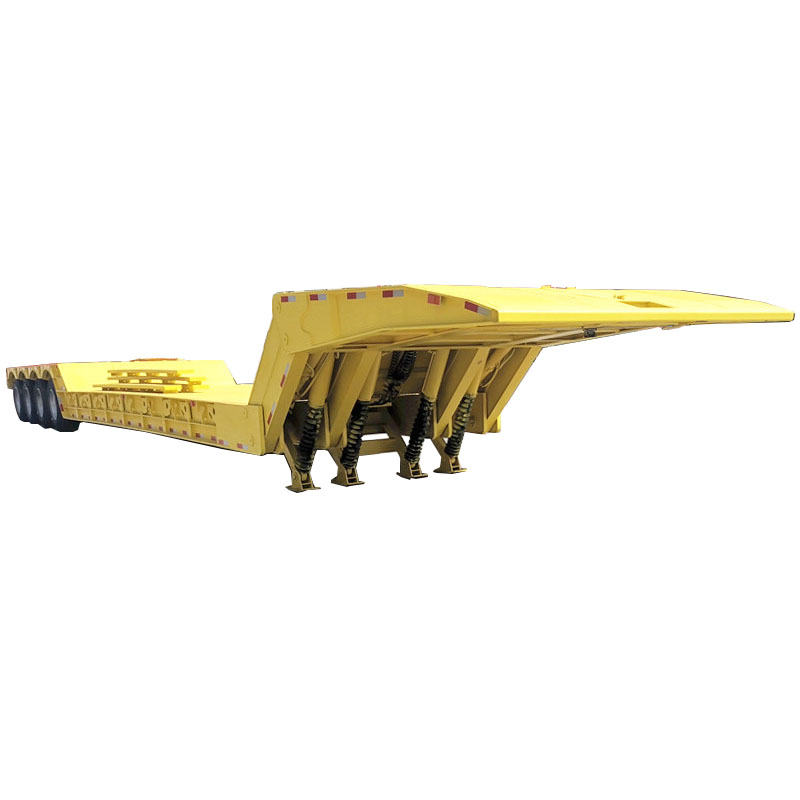

The gooseneck of this folding gooseneck trailer is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck lowboy trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, folding gooseneck is shallow and stable, could effective solutions for cargo loading.
Prices of 4 Axle Folding Gooseneck Lowboy Trailers for Sale in Sudan Khartoum
Prices of 4 Axle Folding Gooseneck Lowboy Trailers for Sale in Sudan Khartoum
Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800mm
Loading capacity: 100 tons.
Gooseneck: hydraulic folding gooseneck
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Axle: 4 axles
Tire: 16 units
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

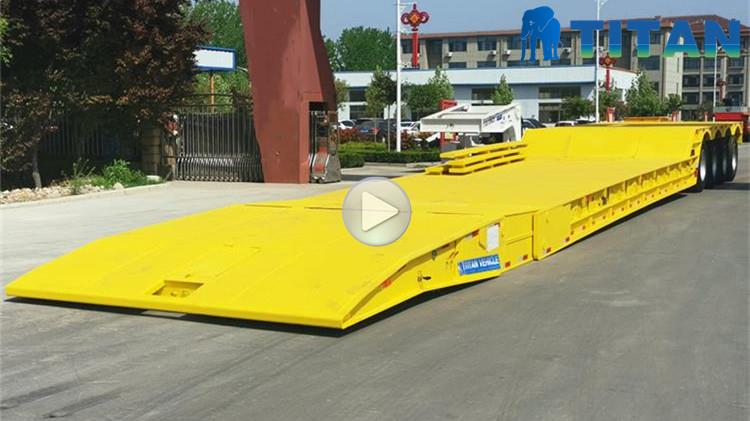

Through the video, you can know different types of gooseneck trailers, as well as the process, testing, packaging and customer feedback, etc.
