3 Axle Side Dump Semi Trailer

Side Dump Trailer Description:

Side dump semi trailer are often used in combination with construction machinery such as excavators and loaders, and are mainly used for the loading, unloading and transportation of earthwork, gravel, and bulk materials. It has the great advantage of high efficiency in unloading bulk cargo. We can provide you with 2, 3, 4 axle side dump trailer, with load ranging from 30-100tons.

Compared with the ordinary container semi trailer, side dump trailer for sale have more self-unloading devices, and the self-unloading function, which is realized by driving the hydraulic top through the power take-off. The use of side dump trailer capacity is also common in ports today. Use its flip back and side flip functions. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and there is a safety protection plate at the front end of the carriage.

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

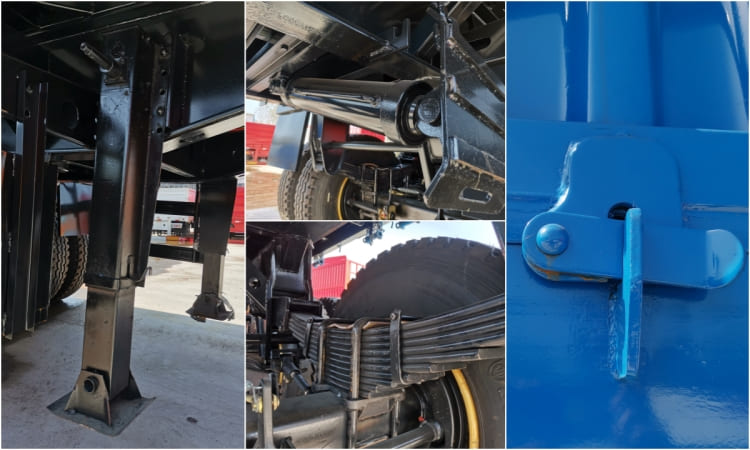

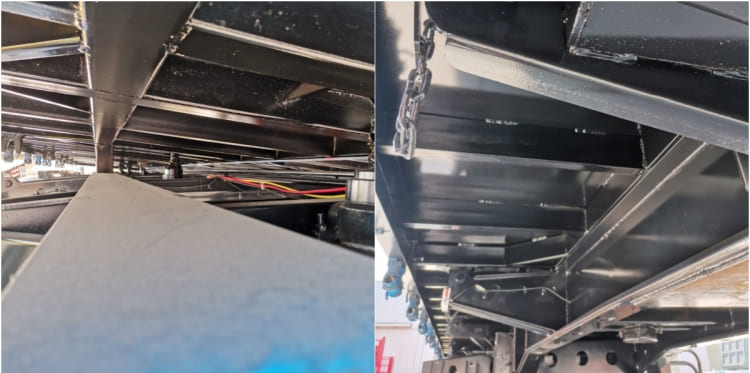

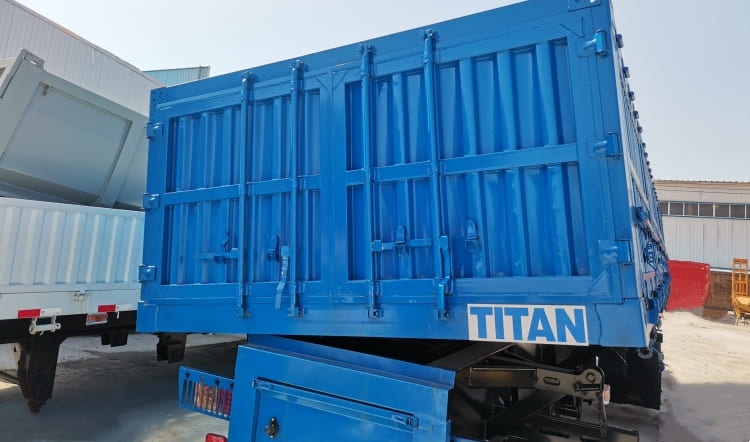

Side Dump Semi Trailer Details:

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

3 Axle Side Dump Semi Trailer Capacity for Sale in Sudan

3 Axle Side Dump Trailer Specification:

Brand: Sinotruk side tipper trailer

Chassis: Heavy duty and extra durability designed I beam

Axle: 3 axles

Tire: 12 units

Leaf spring: 10 PCS

Loading capacity: 30-60 tons

Hydraulic system: HYVA cylinder

Suspension: Mechanical suspension

Lifting system: Side lifting

Kingpin: 3.5’’ bolt - in king pin 90

Landing gear: JOST/FUWA

Braking system: WABCO

Accessories: One standard tool box , one rocker handle , one Shaft wrench

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Side Dump Trailer for Sale Advantages:

1. The main beam of side dump trailer is designed with double plates and the materials is HG60 high-strength steel, which have stronger carrying capacity; it is not easy to damage, greatly extend the service life. And the sub beams are finely welded, scientifically designed, accurate data, long service life, high safety factor, low after-sales rate, long service life, and praised by customers.

2. The side dump trailer for sale can be designed to turn left, right, and bilaterally, etc. According to customer requirements, which can effectively improve the efficiency of bulk cargo transportation by loader and unloader, create more economic value for customers, and save time and cost for customers.

3. The side dump trailer capacity body is welded with high-quality steel, with advanced technology and mature and advanced production lines, representing the top production technology. The side dump trailer for sale has reasonable structure, reliable performance, convenient operation, beautiful appearance and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium-heavy and bulk cargo.

4. The side dump trailer is painted with polyurethane paint, the color of the whole vehicle is more beautiful, energy saving and environmental protection, long service life, effectively protect the body from rusting, prolong the service life of the whole vehicle, and the color can be customized according to customer needs.

Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
