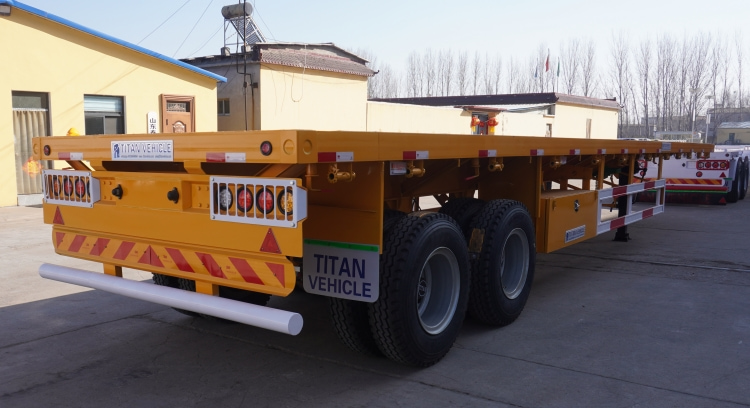

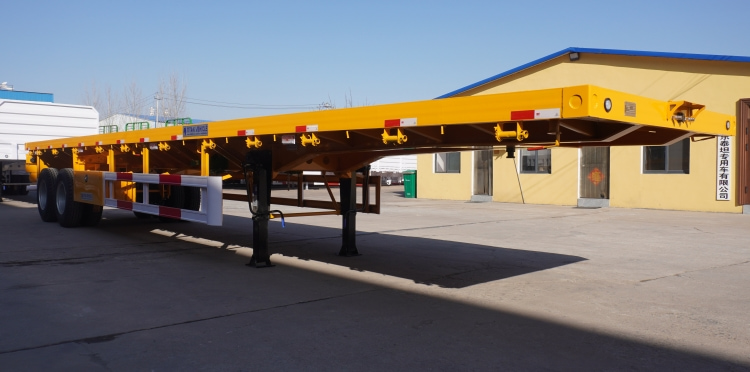

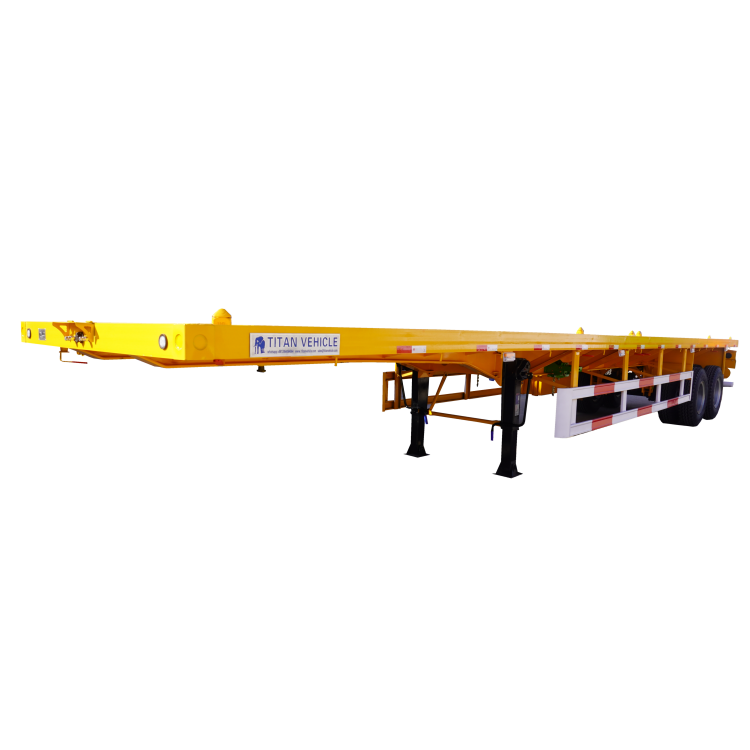

2 Axle 40 Ft Flatbed Semi Trailer

Flatbed Semi Trailer for Sale Description :

2 axles 40 ft flatbed semi trailer for sale can transport 20ft, 40ft, 48ft container. 2 axle flatbed semi trailer has heavy duty machanical spring suspension. Sinotruk Guinea can also offer the 20ft/40ft/48ft/53ft, 2/3/4 axles, the capacity from 60-100 tons.

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

2 Axle 40 Ft Container Flatbed Semi Trailer for Sale in Sudan

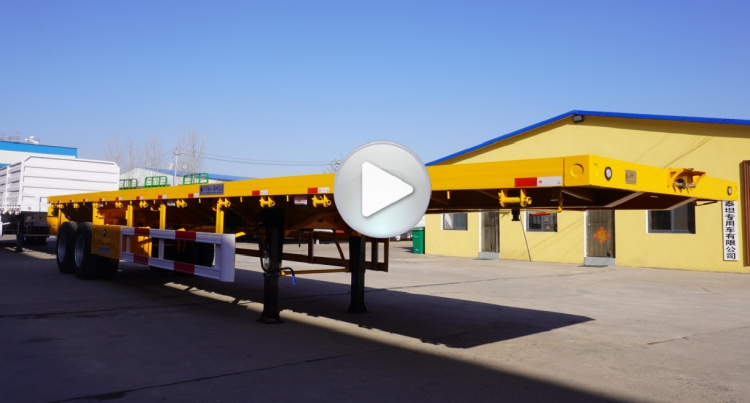

Video of Flatbed Semi Trailer for Sale :

Container Flatbed Semi Trailer Specification :

Loading capacity(ton): ≤40T

Axles: 2 axles, 13T/16T ,FUWA/ BPW

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

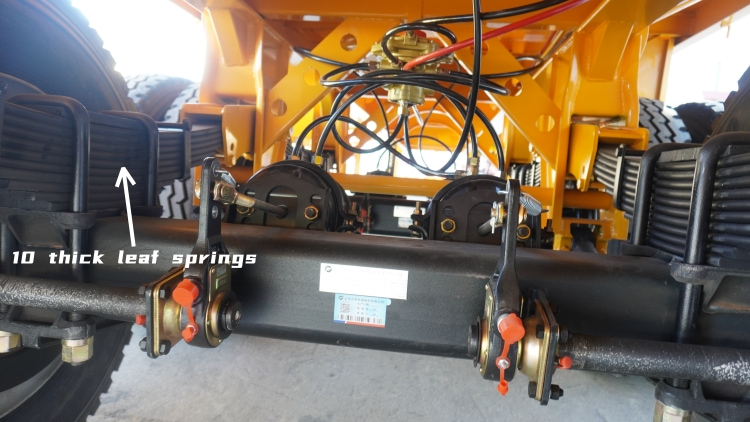

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

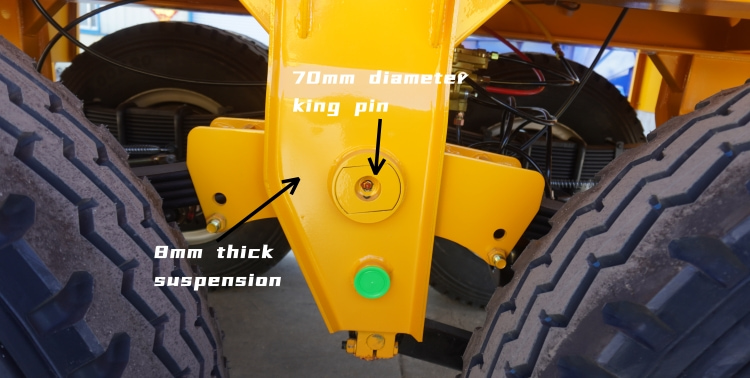

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand D200T or Chinese brand 28tons

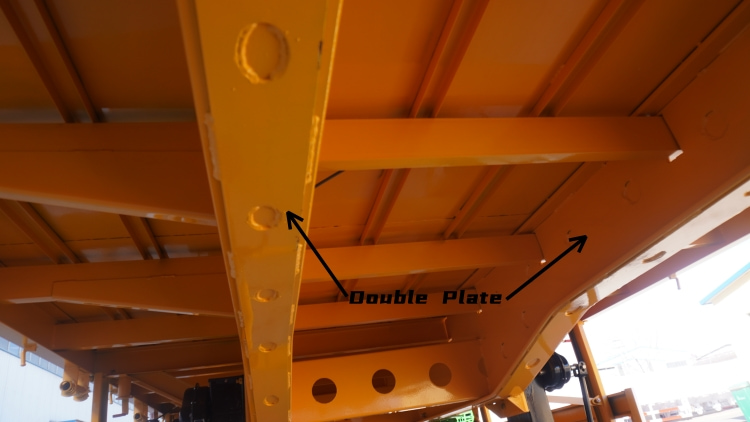

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

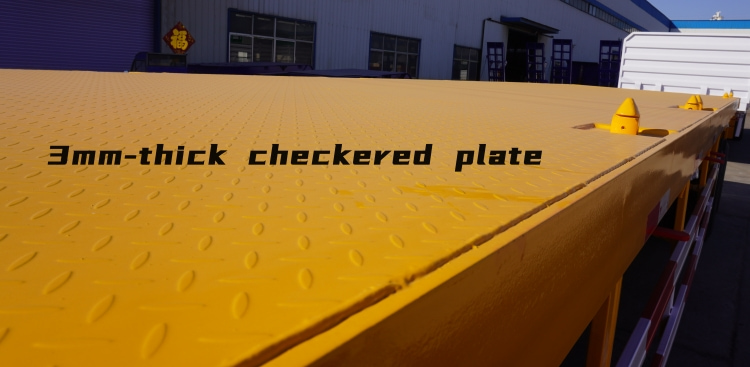

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO

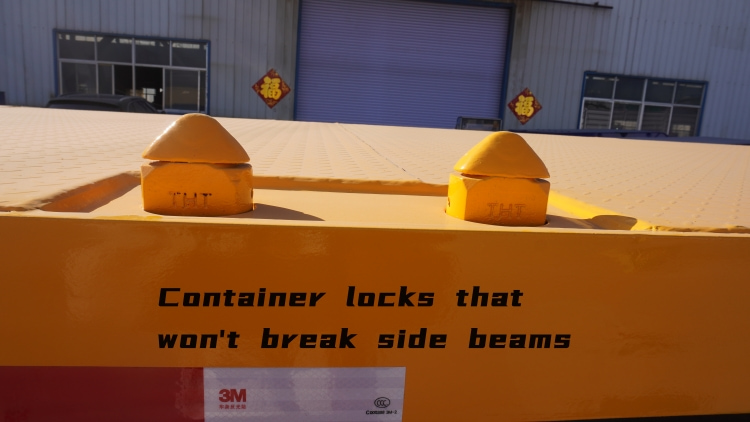

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve
